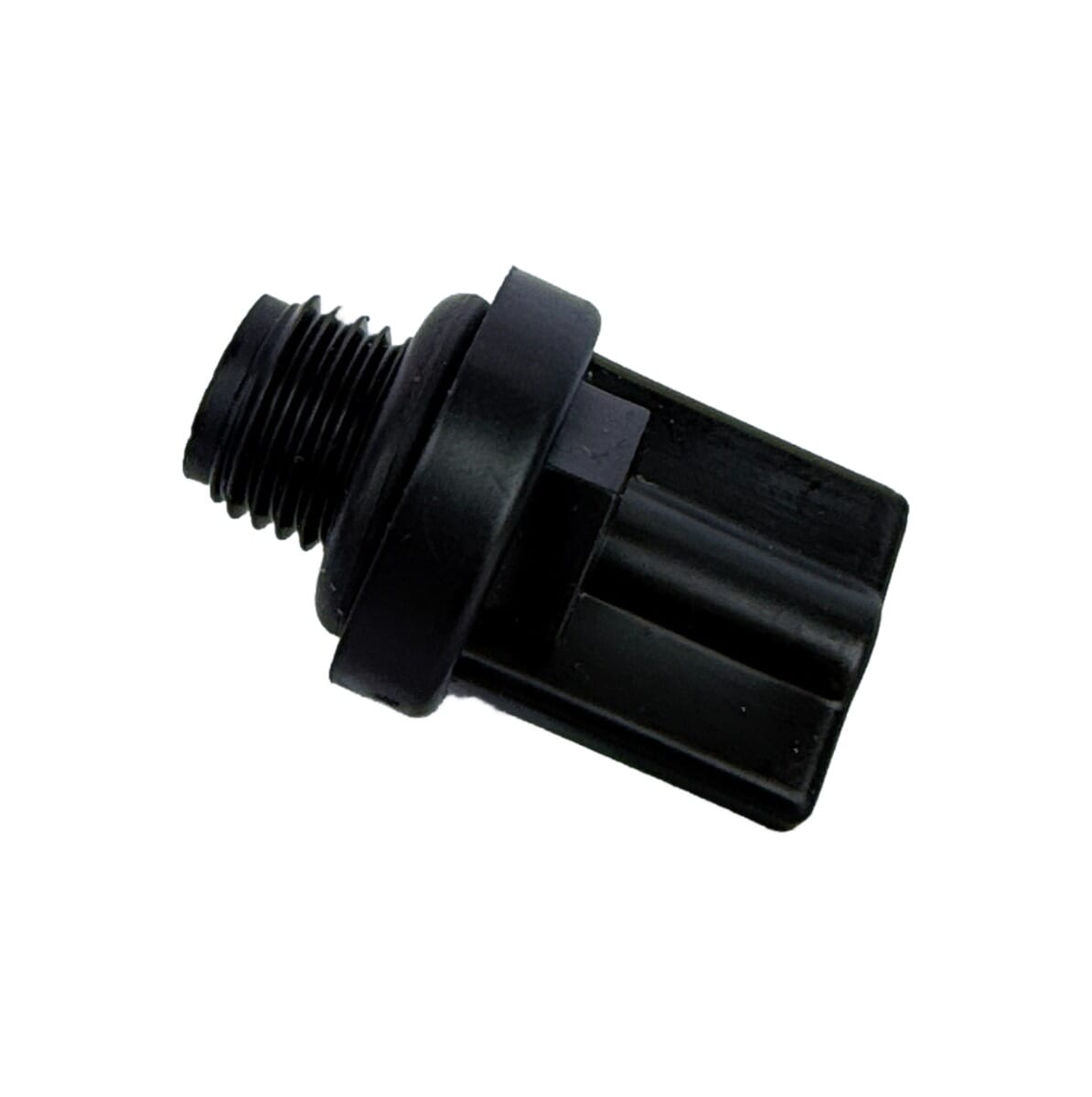

Wavemaster Pump Drain Plug with O-Ring 32267-1

This drain plug screws into the female port on the front of Wavemaster 3000, 4000, and 6000 jet pumps when no bleed line is present. On spas that do have a bleed line, the 32267 barbed nipple is used instead of this plug. Removing the plug during winterization allows residual water to drain from the pump, helping prevent freeze damage when the spa is left empty for the winter.

Compatible with many Hot Spring, Solana, Hot Spot, Freeflow, and Fantasy models from 1993–2026.

• Offical Hot Spring Replacement Wavemaster Jet Pump Replacement Draig Plug
• Includes 1 x drain plug fitting and o-ring.
• Easy to replace. Unscrew old fitting and replace with new fitting. Screw in tight by hand (overtightening can snap the fitting).

Diagnostics

Hot Tub Pump Leaking on one of plugs on wet end

Replace drain plug.

Hot Tub Pump Leaking at Bottom by Drain Fitting/Tube

If you have a a vinyl hose running from your pump (drain hose) then replace barb fitting as this has likely become brittle and snapped. If you simply have a stopped on the end of your pump then replace with a drain plug (this product).

Hot Tub Pump Leaking on the side by Screw Cap

Replace 1/4 Inch Cap.

Pump Seized and Not Operating

If your hot tub pump is seized and not operating then it may need replacing. At first you, you could try loosening the impeller manually and greasing it.

Pump Leaking at Seal

Replace wet end
