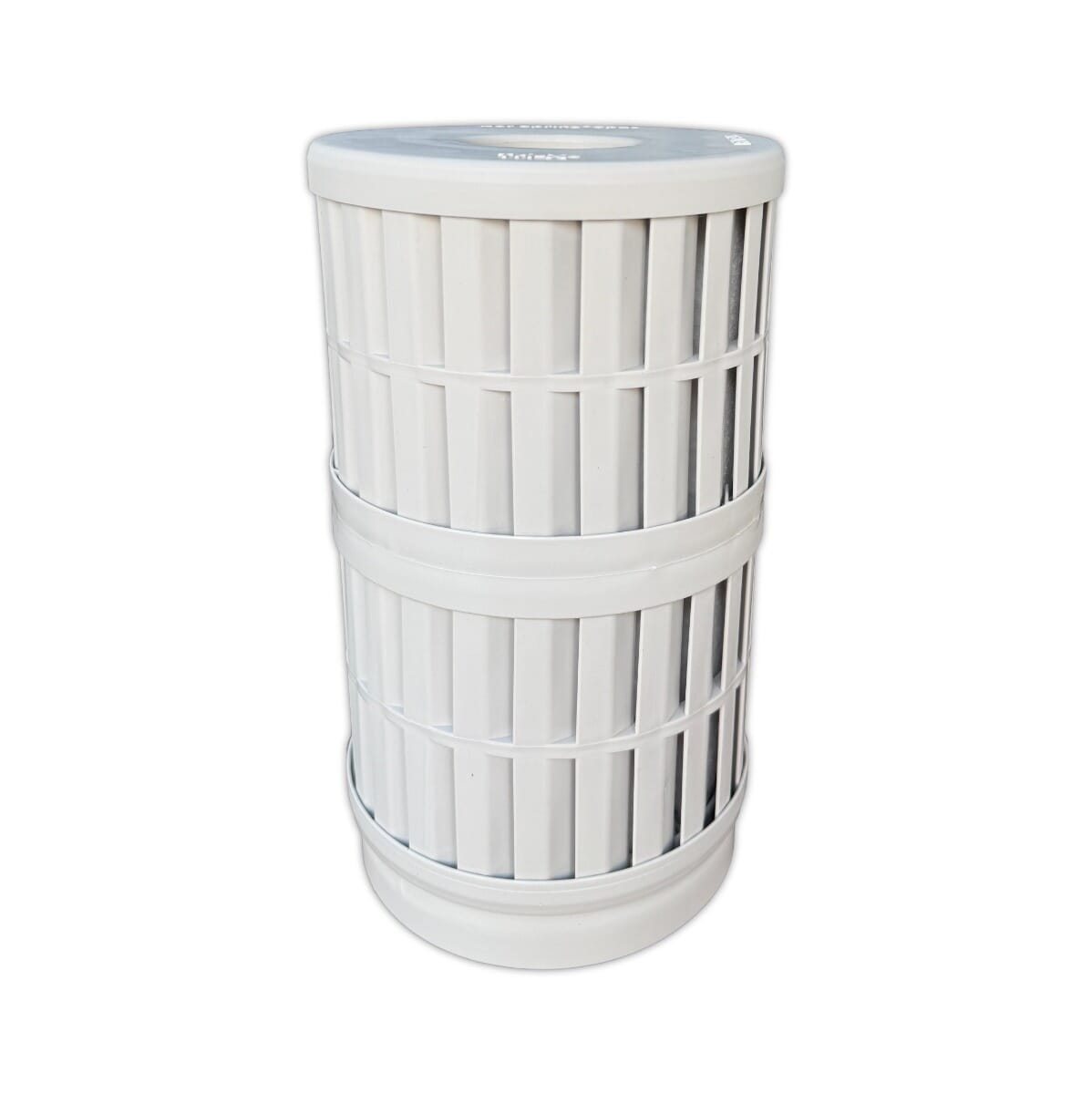

Hot Spring Tri-X Filter (New Style)
- The all new Tri-X Filter from Hot Spring Spas (Part 79435)
- Advanced, long-lasting filter technology exclusivley for Hot Spring Spas
- Superior performance, exceptional durability and unrivaled cleaning convenience.
- As standard on all 2026+ Highlife spas but back compatible with all old Tri-X filters and Hot Spring Highlife models.
The all new Hot Spring Tri-X filter is an advanced, long-lasting filter made exclusively for Hot Spring Spas. This filter offers superior filtration performance, better durability and unrivaled cleaning convenience.
This filter is the standard model on all 2026+ Hot Spring Highlife Spas and is also back compatible with ALL highlife years.
Hot Spring P/N 79435.
The NEW Tri-X holds more particles than the older Tri-x but this does not deny performance. Tradiitonal filters and the old Tri-X would reduce jet performance as particles hit it/as it got dirty. The durability has been tested against the old Tri-X with slower degradation and therefore a longer lifespan.
Compatible models include:
- Hot Spring Aria and Aria NXT (All years)
- Hot Spring Envoy and Envoy NXT (All years)
- Grandee and Grandee NXT (All years)
- Jetsetter and Jetsetter NXT (All years)
- Prodigy (All years)
- Sovereign (All years)
- Summit (All years)
- Triumph (All years)
- Vanguard (All years)
- Vista (All years)
How to Clean your New Tri-X Filter
Please Note: This filter cannot be cleaned in the dishwasher
Option 1 - Bucket Plunge (Hot Spring Recommended)
Tools Required
- Garden Hose (with spray nozzle)
- Spray Nozzle
- 5 Gallon (19L) Bucket
1. Turn off Power to Hot Tub
A. Use the topside control panel to turn on spa functions.
B. Turn off power to the hot tub by going to the disconnect switch or the spa panel, and flip the breaker to the “off” position.
A. Use the topside control panel to turn on spa functions.
B. Turn off power to the hot tub by going to the disconnect switch or the spa panel, and flip the breaker to the “off” position.
2. Locate Filter in Spa
A. Locate the filter lid, open it, and put the filter lid aside.
B. Remove the filter cap located at the top of each filter.
C. Remove the filters one at a time.
A. Locate the filter lid, open it, and put the filter lid aside.
B. Remove the filter cap located at the top of each filter.
C. Remove the filters one at a time.
IMPORTANT
Start with the circulation pump filter, identified by the gray filter cap. This is the most important filter to clean.
Start with the circulation pump filter, identified by the gray filter cap. This is the most important filter to clean.
NOTE
It is recommended to rotate filters so that after each cleaning a different filter is being used on the circulation pump location inside filter compartment.
It is recommended to rotate filters so that after each cleaning a different filter is being used on the circulation pump location inside filter compartment.
3. Remove Filter from Spa
Carefully pull out the filter cartridge and set it aside on a clean surface.
Carefully pull out the filter cartridge and set it aside on a clean surface.
4. Remove Large Debris
Manually remove any large debris (twigs, leaves, pine needles, etc) that can easily be removed from filter grates.
Manually remove any large debris (twigs, leaves, pine needles, etc) that can easily be removed from filter grates.
5. Rinse Filter Cartridge
NOTE: Avoid using a pressure washer as it may damage the filter.
NOTE: Pay extra attention to the side openings - spray inside each vertical opening to remove dirt and other contaminants.
A. Flip the filter so that the bottom side is up. Remove the cap by rotating it counterclockwise until loose, remove, and set it aside.NOTE: Pay extra attention to the side openings - spray inside each vertical opening to remove dirt and other contaminants.
B. Flip the cartridge over so that the bottom side is down.
C. Hold the cartridge vertically and spray between the vertical side openings. Make sure to spray from top to bottom.
D. Rotate the cartridge as you spray to ensure all sides are cleaned.
6 Rinse Filter Cavities
A. Flip filter cartridge so that the bottom side is facing up to where the nine cavities are visible.
B. Identify the nine cavities next to the center tube and rinse with garden hose with spray nozzle.
C. Make sure to spray all nine cavities with water.
A. Flip filter cartridge so that the bottom side is facing up to where the nine cavities are visible.
B. Identify the nine cavities next to the center tube and rinse with garden hose with spray nozzle.
C. Make sure to spray all nine cavities with water.
7. Plunge Filter Cartridge
A. Fill a 5 gallon (19L) bucket with clean water up to 3/4 full.
B. Holding your filter with both hands submerge filter in and out of the water with rapid motion. Do this 10 times.
C. Change the water and repeat the process if the water becomes dirty.
A. Fill a 5 gallon (19L) bucket with clean water up to 3/4 full.
B. Holding your filter with both hands submerge filter in and out of the water with rapid motion. Do this 10 times.
C. Change the water and repeat the process if the water becomes dirty.
8. Deep Clean (Optional)
A. Fill a 5 gallon (19L) bucket with clean water up to 4 gallons (15L) full.
B. Add Happy Hot Tubs Filter Cleaner Soak
C. Submerge filter cartridge into the bucket full of cleaning solution.
D. Let your filter cartridge soak for several hours or overnight.
E. Thoroughly rinse the filter with a hose until no noticeable residue remains (no suds).
A. Fill a 5 gallon (19L) bucket with clean water up to 4 gallons (15L) full.
B. Add Happy Hot Tubs Filter Cleaner Soak
C. Submerge filter cartridge into the bucket full of cleaning solution.
D. Let your filter cartridge soak for several hours or overnight.
E. Thoroughly rinse the filter with a hose until no noticeable residue remains (no suds).
NOTE: Filter cleaners often produce soap-like suds. Rinse thoroughly.
NOTE: Filter cannot be cleaned in dishwasher.
NOTE: Filter cannot be cleaned in dishwasher.
9. Check for Damaged Filter
A. Check for any signs of damage: cracks, discoloration, or any other visible damage.
B. If damaged, replace the filter.
A. Check for any signs of damage: cracks, discoloration, or any other visible damage.
B. If damaged, replace the filter.
10. Insert Filter into Spa
A. Reapply bottom cap to filter and rotate the filter with the cap facing down.
B. Place the filter cartridge in the spa filter compartment.
C. Secure the filter to stand-pipe with the filter cap.
A. Reapply bottom cap to filter and rotate the filter with the cap facing down.
B. Place the filter cartridge in the spa filter compartment.
C. Secure the filter to stand-pipe with the filter cap.
Option 2 - Instant Spray and Rinse
- Turn power off to hot tub.
- Carefully pull out the filter cartridge and set it aside on a clean surface.
- Remove any large debris like leaves etc from grill.
-
Rinse Filter CartridgeNOTE: Avoid using a pressure washer as it may damage the filter.A. Flip the filter so that the bottom side is up. Remove the cap by rotating it counterclockwise until loose, remove, and set it aside.
NOTE: Pay extra attention to the side openings - spray inside each vertical opening to remove dirt and other contaminants.
B. Flip the cartridge over so that the bottom side is down.
C. Hold the cartridge vertically and spray between the vertical side openings. Make sure to spray from top to bottom.
D. Rotate the cartridge as you spray to ensure all sides are cleaned. - Spray Happy Instant Filter Cleaner into the bottom openings.
- Wait 15 minutes.
- Rinse thoroughly from both ends until all suds are gone and the water runs clear.
